Sector: Food & Drink / Distillation
Location: United Kingdom
Year: 2021
Equipment: MVR Evaporators, Separators, Complete Ducting & Process Piping
Design Code: EN 13445
Project Overview

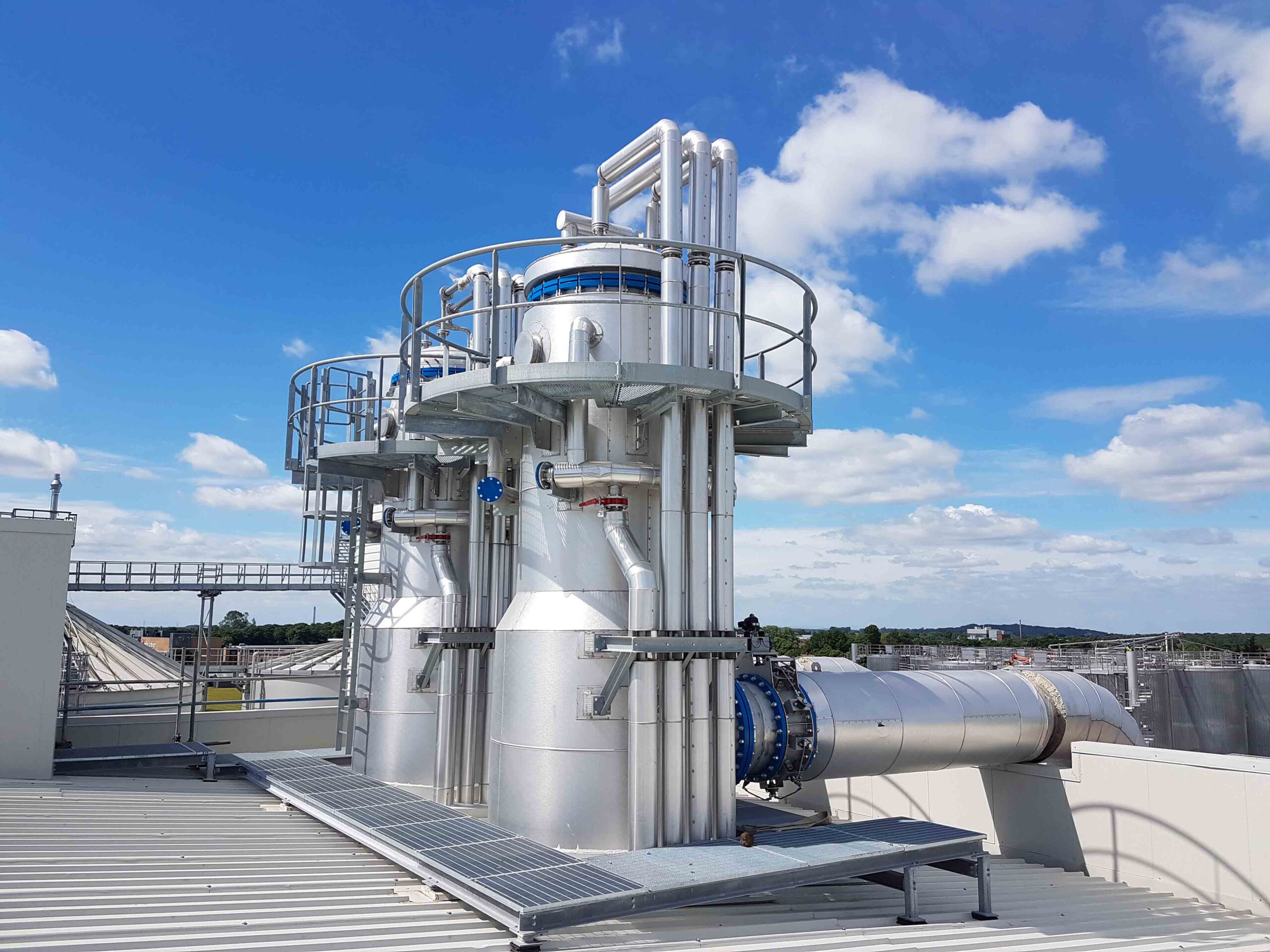

Following the successful installation of two MVR evaporators in 2015, CITAL was again entrusted in 2021 with providing an upgraded syrup concentration MVR plant in Yorshire (UK). The new installation closely replicates the successful design at the North of Italy site, with improvements in heat-exchange capacity, distribution efficiency, inspection accessibility, and structural optimization.
In addition to the new evaporators and separators, CITAL provided full fabrication, supply, and site installation of all large-diameter ducting and process piping.
Technical Specifications
Evaporators (2 units):
- Internal diameters: 1,530 mm (shell), 1,900 mm (steam inlet)
- Shell length: 13,000 mm
- Tubes: 592 tubes, Ø42.4 × 1.25 mm, length 13,000 mm, mandrel-expanded
- Material: Stainless Steel EN 10028-7 1.4404 (316L)
- Design pressure (tubes/shell): -1 / +0.49 barg
- Estimated Weight per unit: 26.5 tons
Separators (2 units):
- Internal diameter: 2,800 mm
- Shell length: 3,500 mm
- Material: Stainless Steel EN 10028-7 1.4404 (316L)
- Design pressure: -1 / +0.49 barg
- Estimated Weight per unit: 7.2 tons

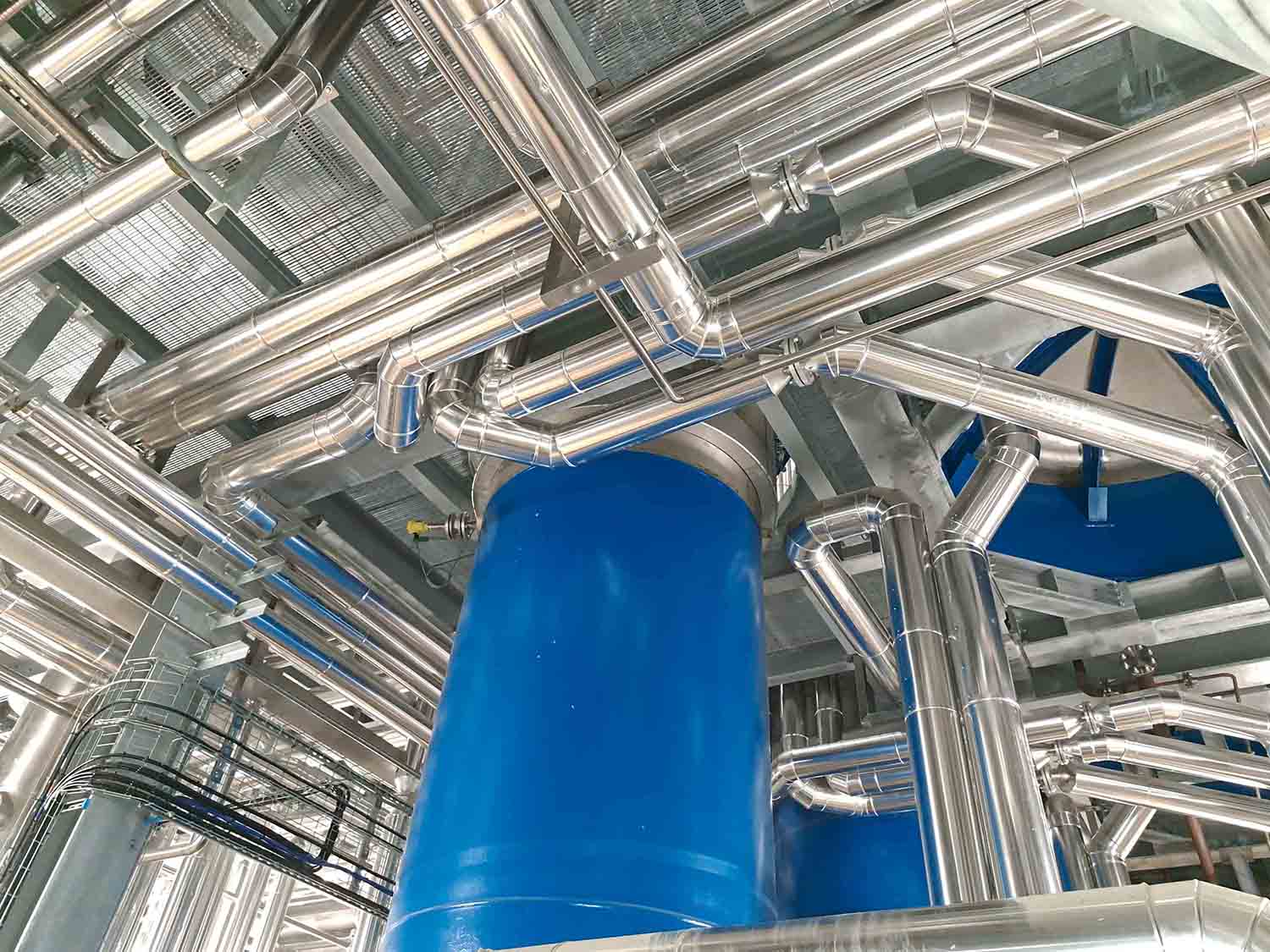

Suction Duct, Connecting Duct, Connecting Duct (Fully supplied and installed by CITAL):
- Diameters: 1,500 / 1,100 / 900 / 800 mm
- Ducting material: Stainless Steel EN 10028-7 1.4404
- Flanges: Carbon steel lined with SS316
- Design pressure: -1 / +0.49 barg

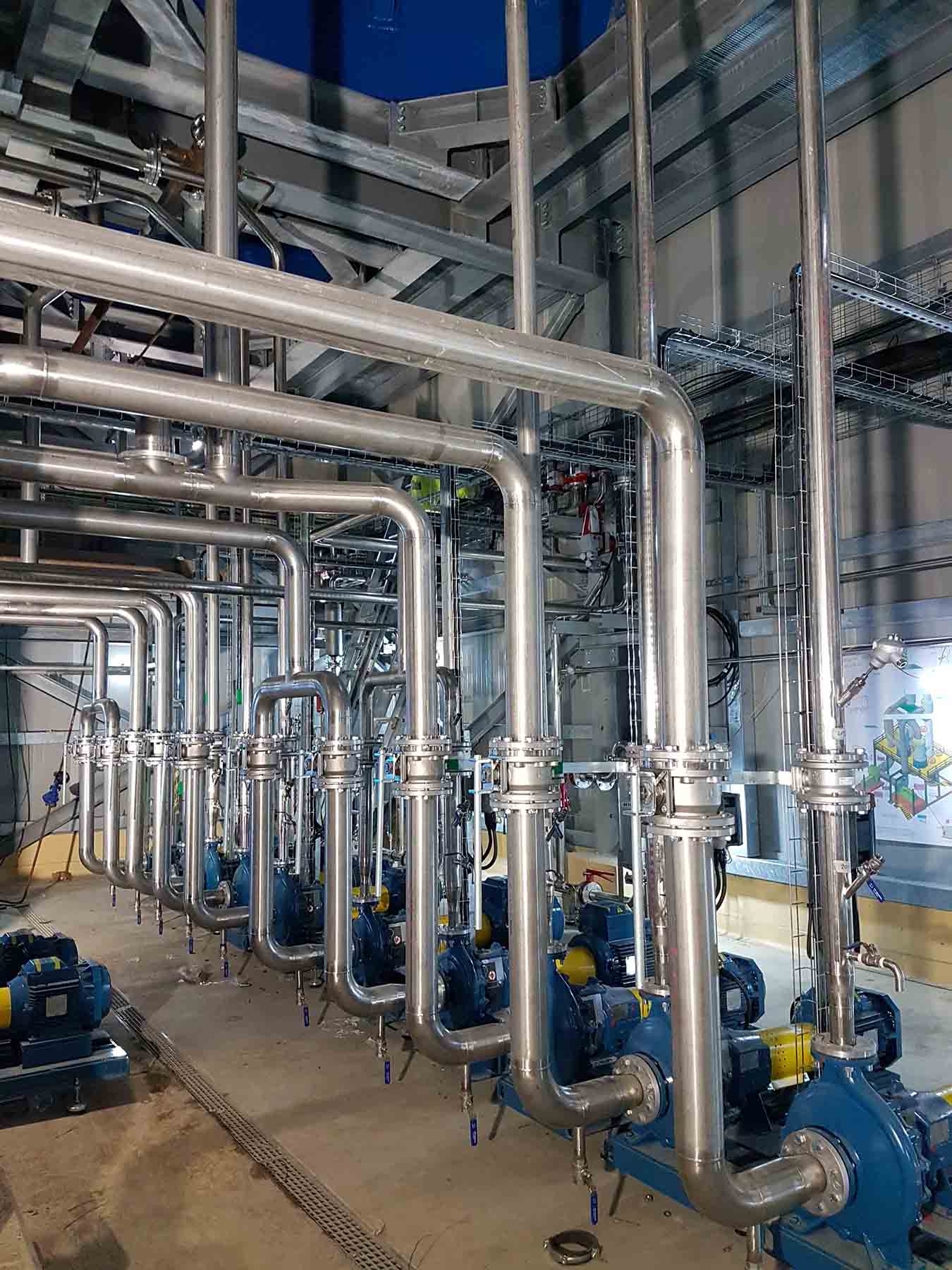

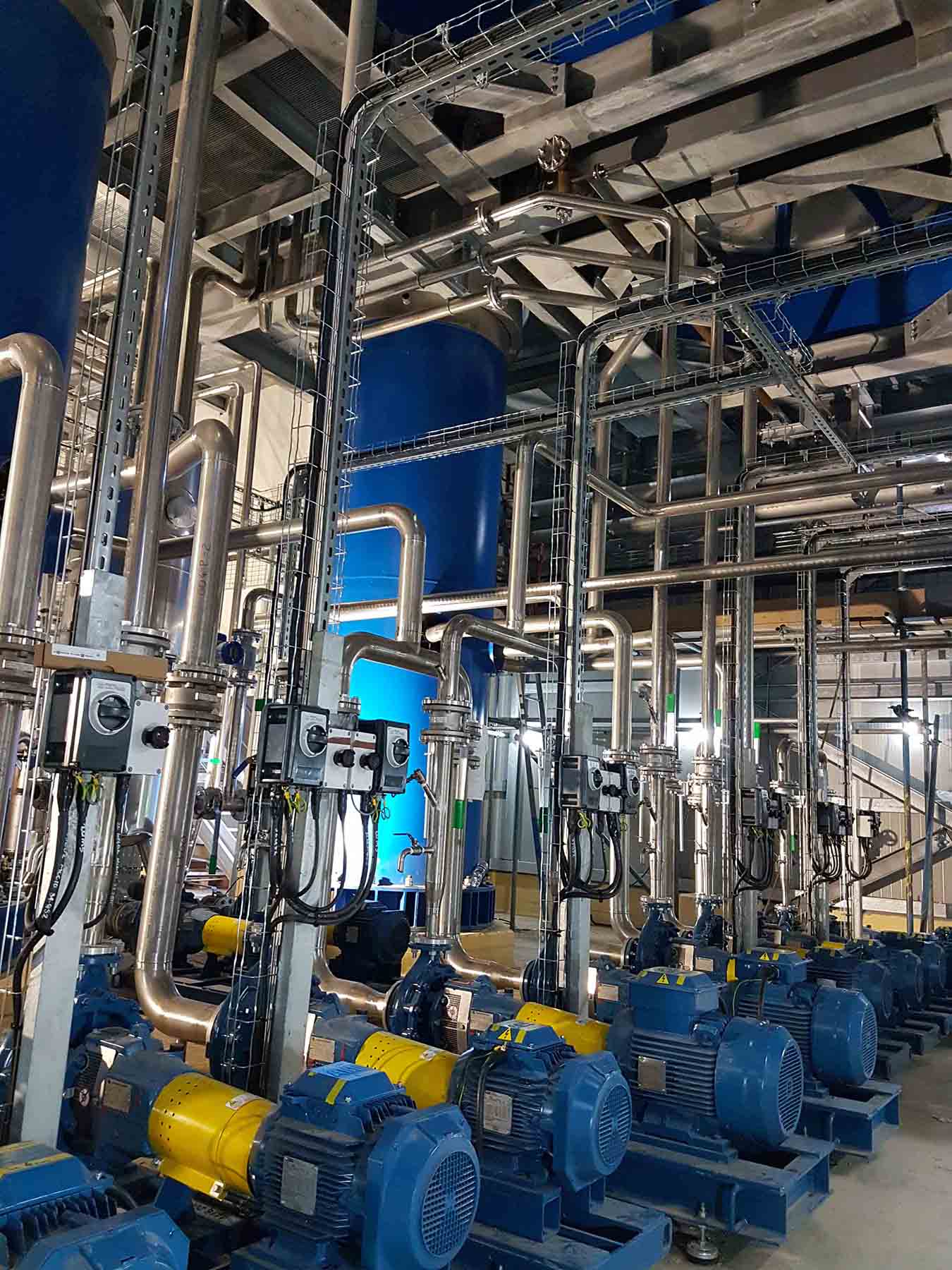

Process Piping (Full fabrication & installation):
- Product piping: AISI 316L Stainless Steel, aluminum flanges (PN10)
- team piping: Carbon Steel A106 Gr.B Sch.40, flanges A105 PN16
Key Strengths
- Enhanced evaporator and separator dimensions for increased performance
- Complete, integrated supply and installation of ducting and process piping
- Full compliance with European PED and EN13445 standards
- Optimized inspection and service accessibility
- Detailed stress analysis and quality inspections throughout fabrication
- 2021
