Sector: Petrochemical
Country: United States
Year: 2016
Category: Pressure Vessels – ASME U-Stamp
Scope:

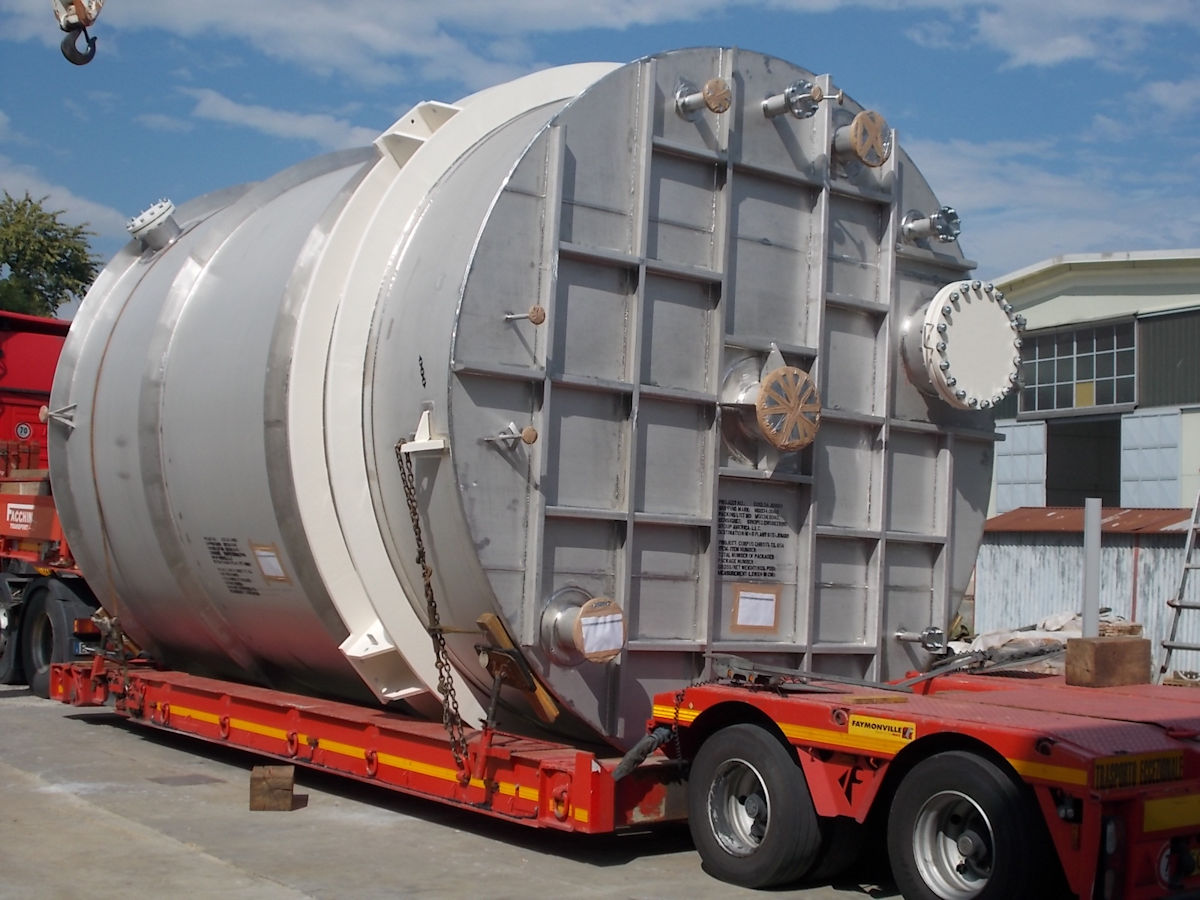

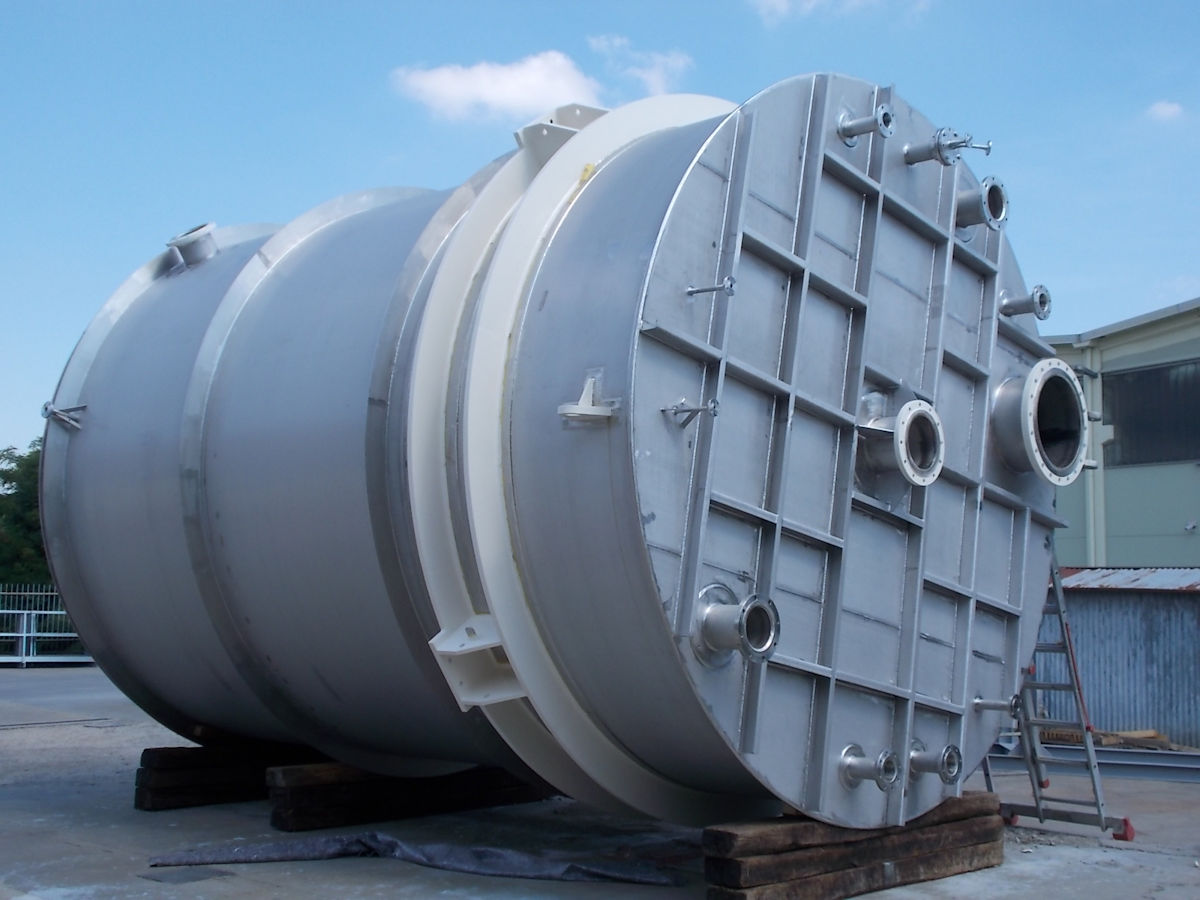

Design, supply, and on-site erection of n. 2 stainless steel pressure tanks for a PET plastic production facility in the USA. The tanks were engineered to handle catalytic and degassing processes, in compliance with ASME VIII Div.1, with U-Stamp certification and registration with the National Board.
Objective:
To support a large-scale plastic production line, CITAL delivered a Catalyst Mix Tank and a Deg Feed Tank made from ASTM A240-304 stainless steel, with full documentation and third-party inspection. Both vessels were designed for reliable performance under process pressure and temperature fluctuations, while meeting stringent U.S. code requirements.
Technical Specifications:
- Number of units: 2
- Type:
• Catalyst Mix Tank
• Deg Feed Tank - Material: ASTM A240 – Grade 304
- Design Code: ASME VIII Div.1
- Certification: ASME “U-Stamp”
- Diameters: from 3,500 mm to 4,100 mm
- Total height: from 5,400 mm to 6,900 mm
- Wall thickness: 6 mm
- Unit weight: from 4,400 kg to 6,400 kg
- Service: Process vessels for PET polymerization plant
Key Strengths:
- Materials and fabrication compliant with ASTM and NBIC standards
- Customized solutions for catalytic reaction and degassing phases in PET processing
- 2016
