Sector: Distillery (Brownfield)
Client: Australia
Year of Completion: 2023
Objective:
Supply of three MVR evaporators and three vertical separators for an industrial-scale distillery plant dedicated to alcohol production. The project followed previous supplies delivered in 2017/2018, replicating and upgrading the design for large-scale industrial operation.
Technical Specifications:

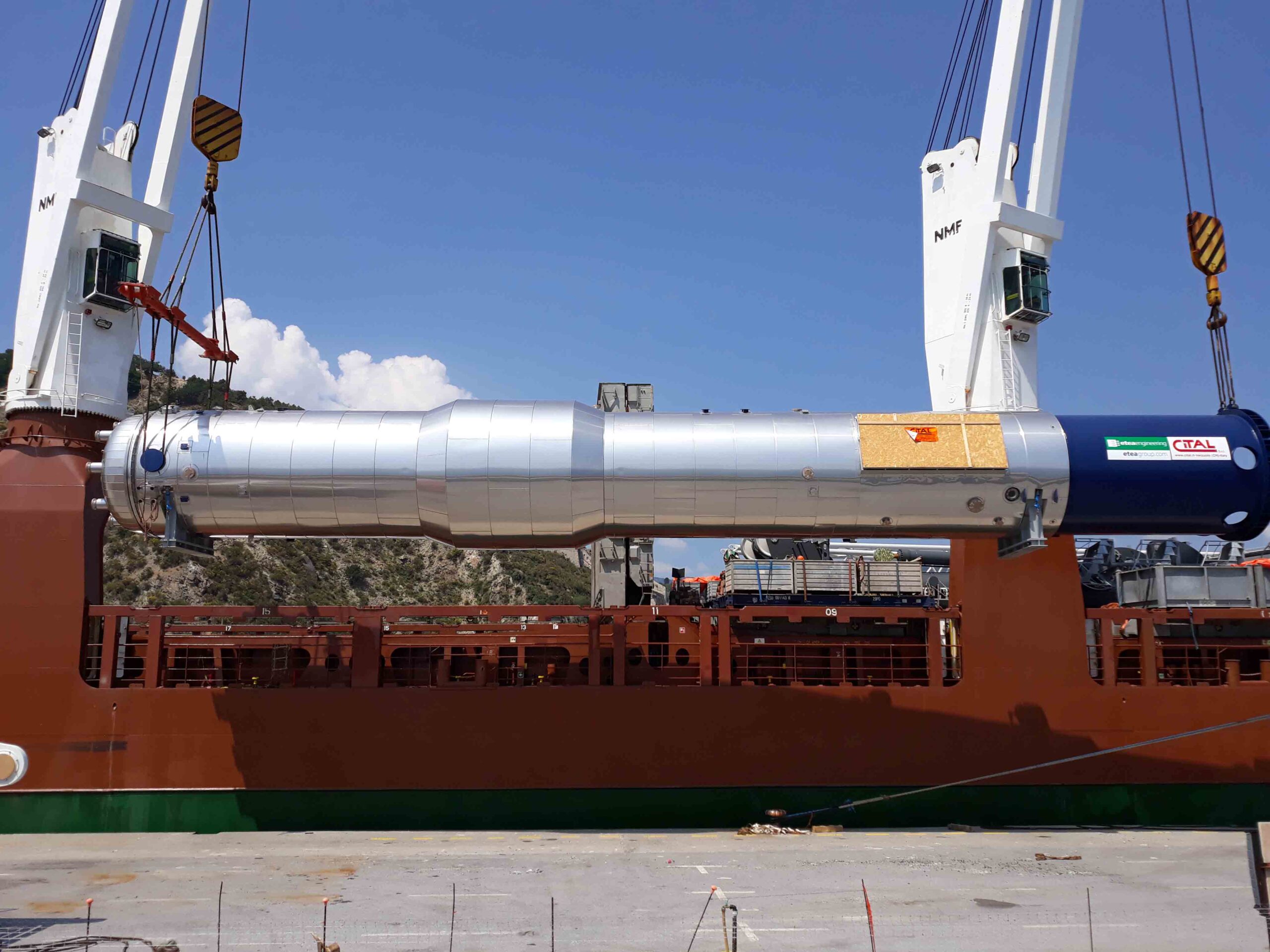

MVR Evaporators (Qty. 3):
- Dimensions: Ø3,000 mm × Height 28,500 mm
- Heat Exchange Surface Area: 6,000 m² each
- Design Pressure: +0.49 barg / Full Vacuum
- Design Temperature: +110 °C
- Design Code: ASME VIII Div.1 Ed.2021
- Main Materials: SA 240 316L / SA 240 316Ti / SA 789 S31803
- Empty Weight: 110 tons
Vertical Separators (Qty. 3):
- Dimensions: Ø4,250 mm × Height 9,800 mm
- Useful Capacity: 137,800 liters
- Operating Pressure: +0.4 / -1 barg
- Operating Temperature: +65 °C
- Design Code: ASME VIII Div.1 Ed.2021
- Material: Stainless Steel SA 240 316L
- Insulation: 100 mm – Corrosion allowance: 0 mm (1 mm only on support structure)
Key Strengths:
- Equipment specifically engineered for energy efficiency through MVR (Mechanical Vapor Recompression) technology
- Comprehensive structural analysis: seismic, wind, and nozzle loads (FEA and WRC 537/297 assessments)
- Seamless integration within an existing brownfield plant, with optimized site assembly and logistics
- Fabrication, testing, and documentation fully compliant with Australian standards (AS1170.2 / AS1170.4)
- 2023
