Sector: Chemical Industry
Country: Mexico
Year of Completion: 2024

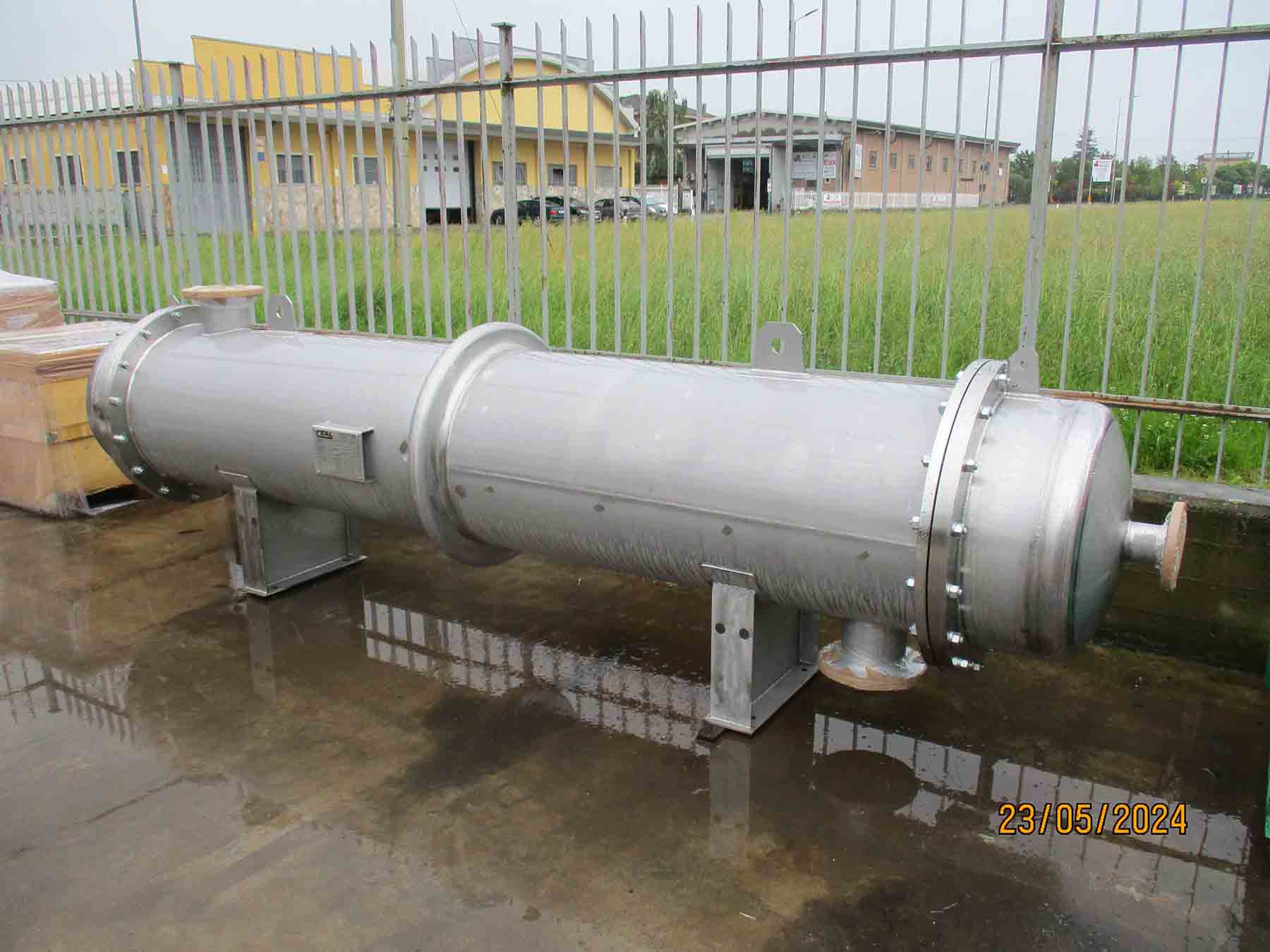

Project: Horizontal process condenser
Objective
CITAL engineered and delivered a horizontal shell & tube condenser with a 50 m² heat exchange surface for a chemical processing facility in Mexico. The project required precise thermal engineering to ensure high efficiency under demanding operating conditions.
Technical Specifications

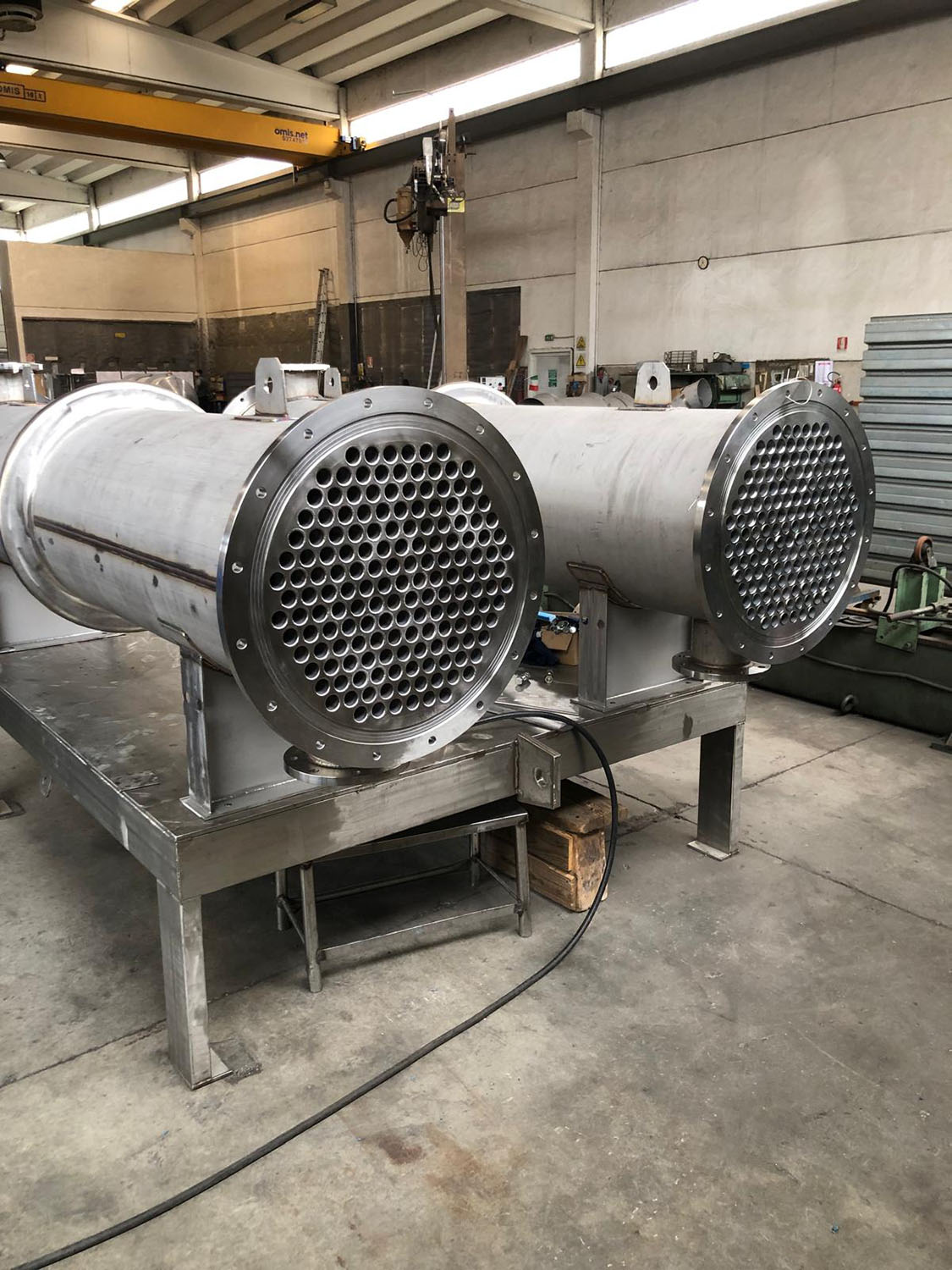

- Equipment type: Horizontal shell & tube condenser
- Heat exchange surface area: 50 m²
- Material: AISI 304L – EN 10204 3.1 certified
- Design code: EN 13445
- Design pressure (tubes/shell): 3.5 barg / 1 barg
- Design temperature: -20°C / +120°C
- Number of tubes: 148 tubes Ø 25.4 mm × 1.65 mm – Length: 1,600 mm
- Test pressure: 5.25 barg (tube side) – 1.5 barg (shell side)
- Empty weight: approx. 1,300 kg
Key Strengths
- High thermal efficiency with compatibility for aggressive process fluids
- Compact design for easy integration into existing systems
- Testing and certification compliant with PED 2014/68/EU
- Durable materials selected for long-term corrosion resistance
- Turnkey delivery with full material traceability
