MVR Evaporation Units – Food & Pharma Sector – Italy 2023

Sector: Food & Pharma
Country: Italy
Year: 2023
Category: Falling Film Evaporator System

Objective:

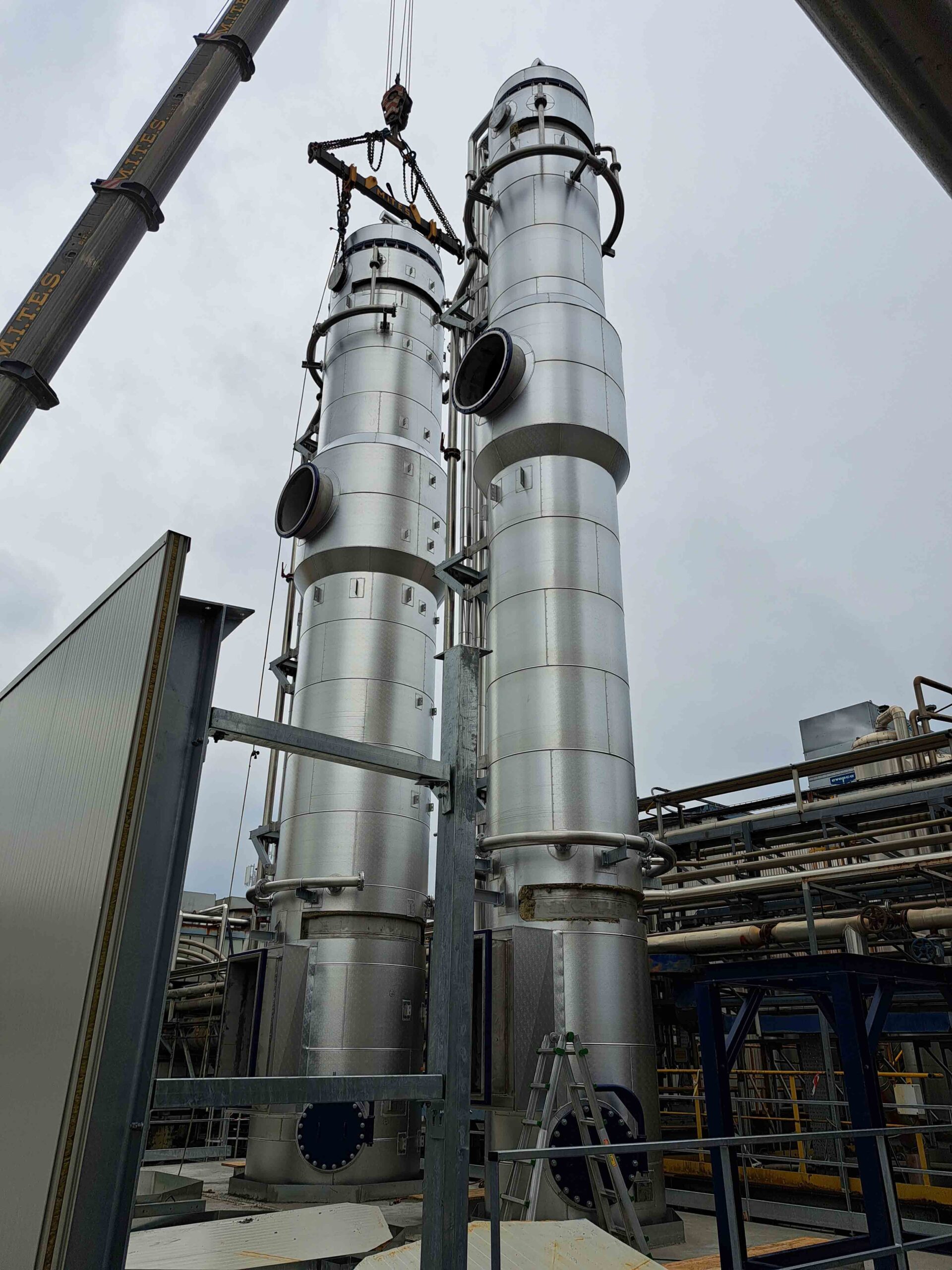

Design, fabrication, and supply of two integrated MVR evaporation units, each consisting of one falling film evaporator and one high-capacity separator. These units are part of a broader optimization project for process syrup concentration and steam recovery in a leading food processing facility in the North of Italy.

Technical Specifications

Unit 1

Evaporator
• Diameter: Ø 2000 mm
• Total Height: ~ 13,000 mm
• Tube Length: 12,000 mm (592 tubes)
• Design Pressure: ±0.49 barg
• Design Temperature: -10 / +110 °C
• Fluid: Glucose syrup / Process condensates
• Material: EN 10028-7 316/316L
• Shell Code: EN 13445-3:2021
• Weight: >20 tons
• Installation: pressure test, site seismic class II

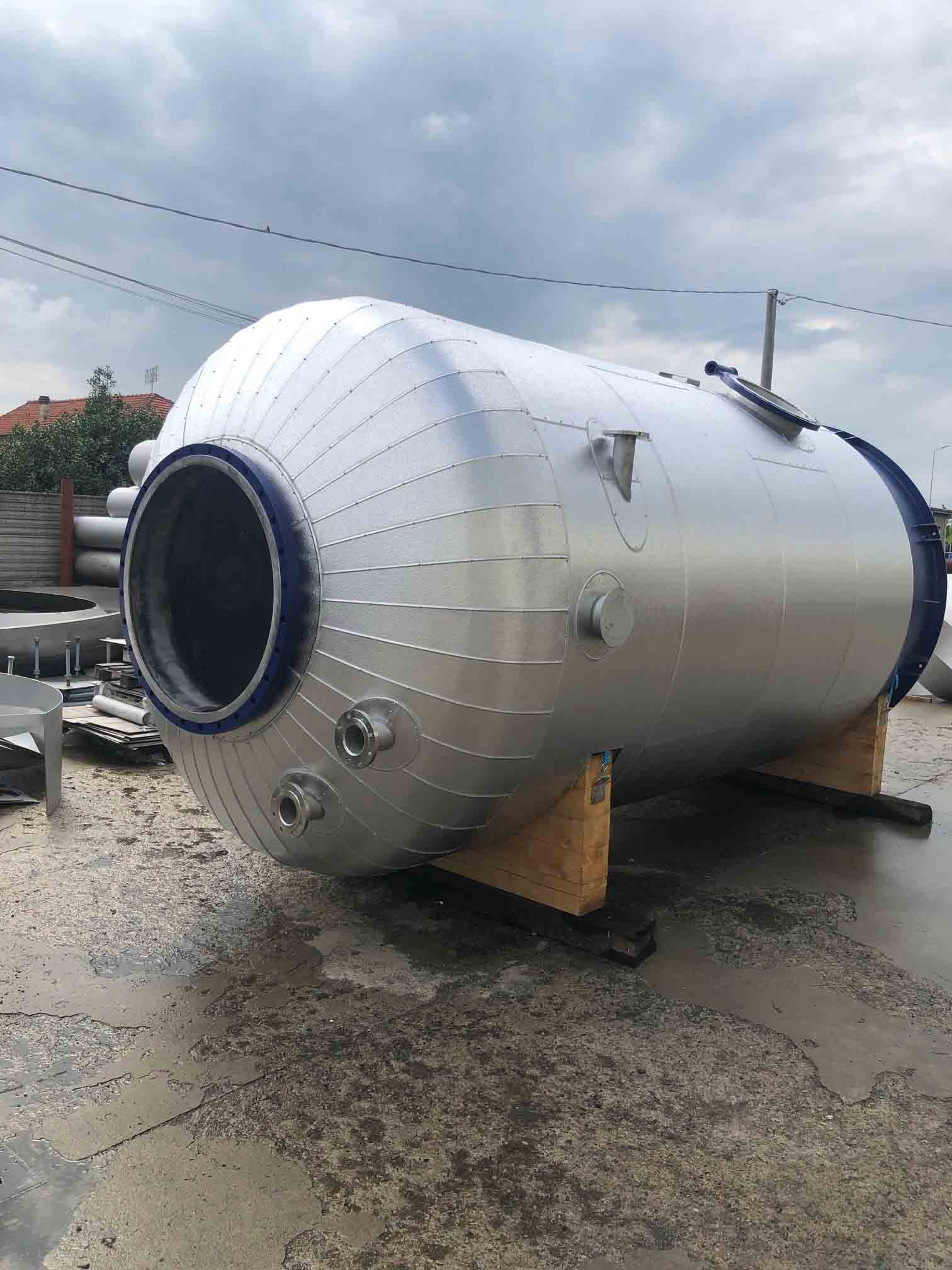

Separator
• Diameter: Ø 2900 mm
• Height: 9600 mm
• Total Capacity: 20,900 L
• Design Pressure: ±0.49 barg
• Design Temperature: -10 / +110 °C
• Material: EN 10028-7 316/316L
• Insulation: 80 mm
• Design Code: EN 13445-3:2021 + WRC 537
• Weight: ~12 tons

Unit 2

Evaporator
• Diameter: Ø 2400 mm
• Shell Height: ~14,000 mm
• Tube Length: ~12,000 mm
• Design Pressure: ±0.49 barg
• Material: EN 10028-7 316/316L
• Fluid: Glucose syrup
• Thermal Insulation: 100 mm
• Design Code: EN 13445-3:2021

Separator
• Diameter: Ø 2400 mm
• Height: 8900 mm
• Total Capacity: 37,300 L
• Design Pressure: ±0.49 barg
• Material: EN 10028-7 316/316L
• Insulation: 80 mm
• Design Code: EN 13445-3:2021
• Weight: ~9 tons

Key Strengths

• Complete Turnkey Design: Full engineering, FEA, and nozzle load validation included
• Thermal Performance: Designed for syrup concentration via MVR with falling film technology

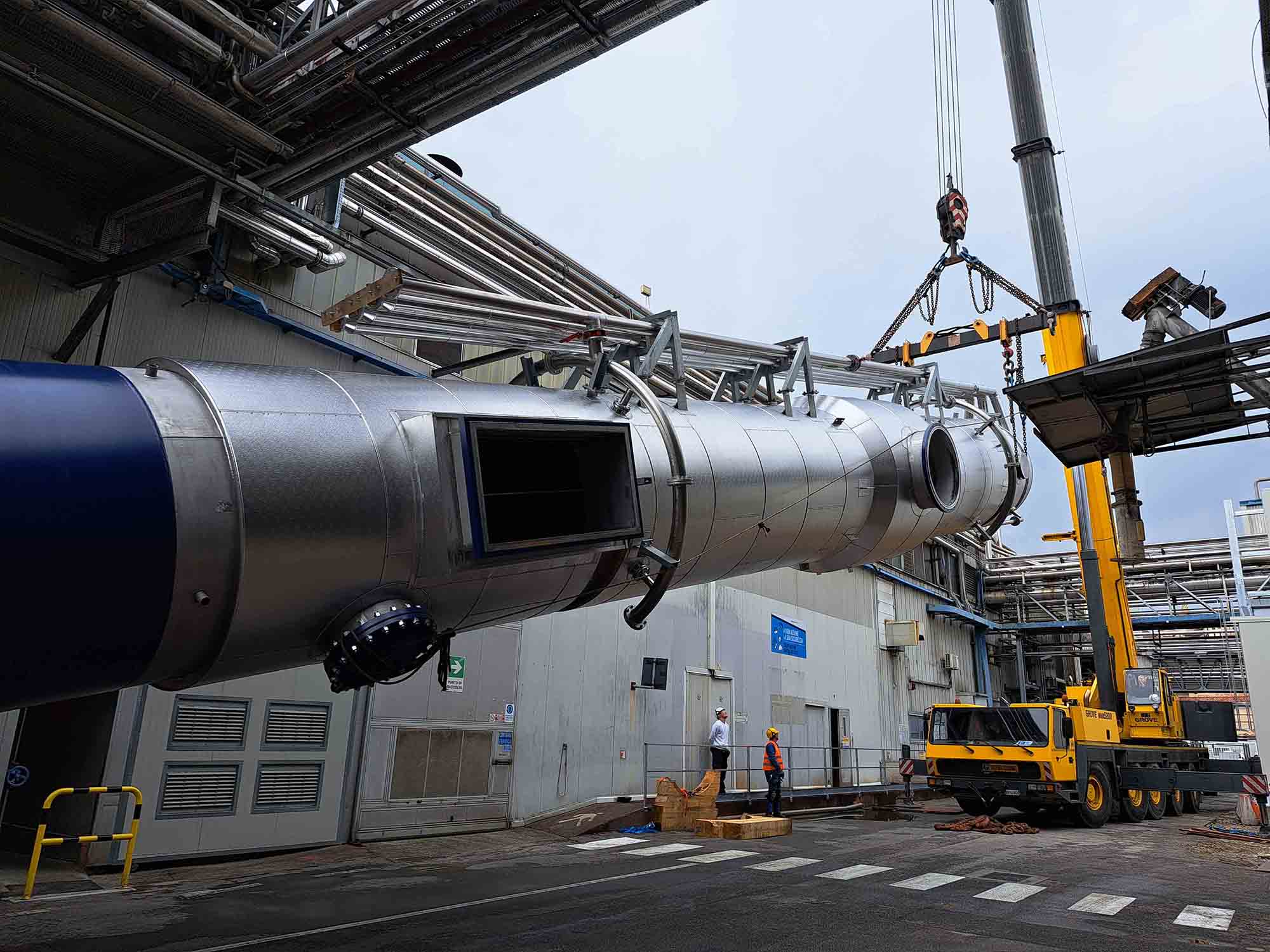

• On-Site Ready: Dimensioned for direct erection with lifting points, insulation, and anchorage systems
• Supply: Supply and assembly of service structure, insulation, ducts and all the piping.

• 2023
