Sector: Distillery (Brownfield)
Country: Australia
Year: 2023
Project: Extra Neutral Alcohol Unit – Nowra (NSW)
Objective:
Supply of 5 distillation columns for the second production line of an expanding distillery, following the first phase of 4 columns previously delivered by CITAL in 2017/18.
Technical Specifications:
- Height: up to 29,500 mm
- Diameter: from Ø 1,100 mm to Ø 3,200 mm
- Material: Stainless steel SA 240 316L / 304L
- Design Code: ASME VIII Div.1 Ed. 2019
- Structural Standards: AS 1170.2 and AS 1170.4
- Design pressure: from FV to +3.5 barg
- Insulation: 100 mm, fireproof cladding
- Service: fractional distillation of alcohol

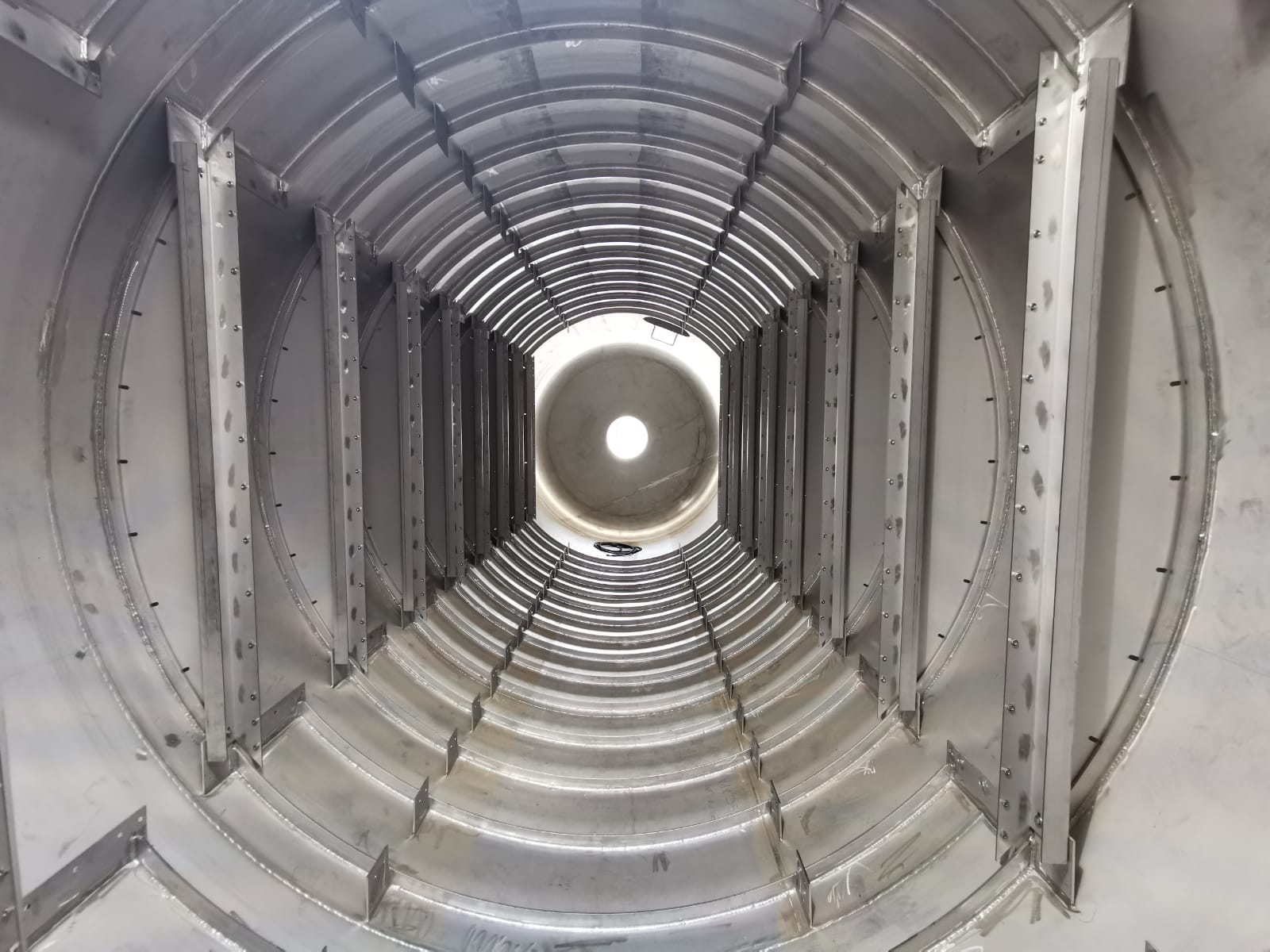

- Accessories: Supply of all internal distillation trays. – Insulation
Key Strengths:
- Custom engineering for brownfield plant, adapted to existing layout
- FEA structural analysis and WRC 537/297 nozzle load verification
- Proven experience with Australian standards and local requirements
- Certified welding, testing supervised by third-party inspection bodies
- Optimised and replicated project based on the successful 2017/18 supply
- 2023
