Field: Biochemical
Client: USA
Year: 2024
Objective:

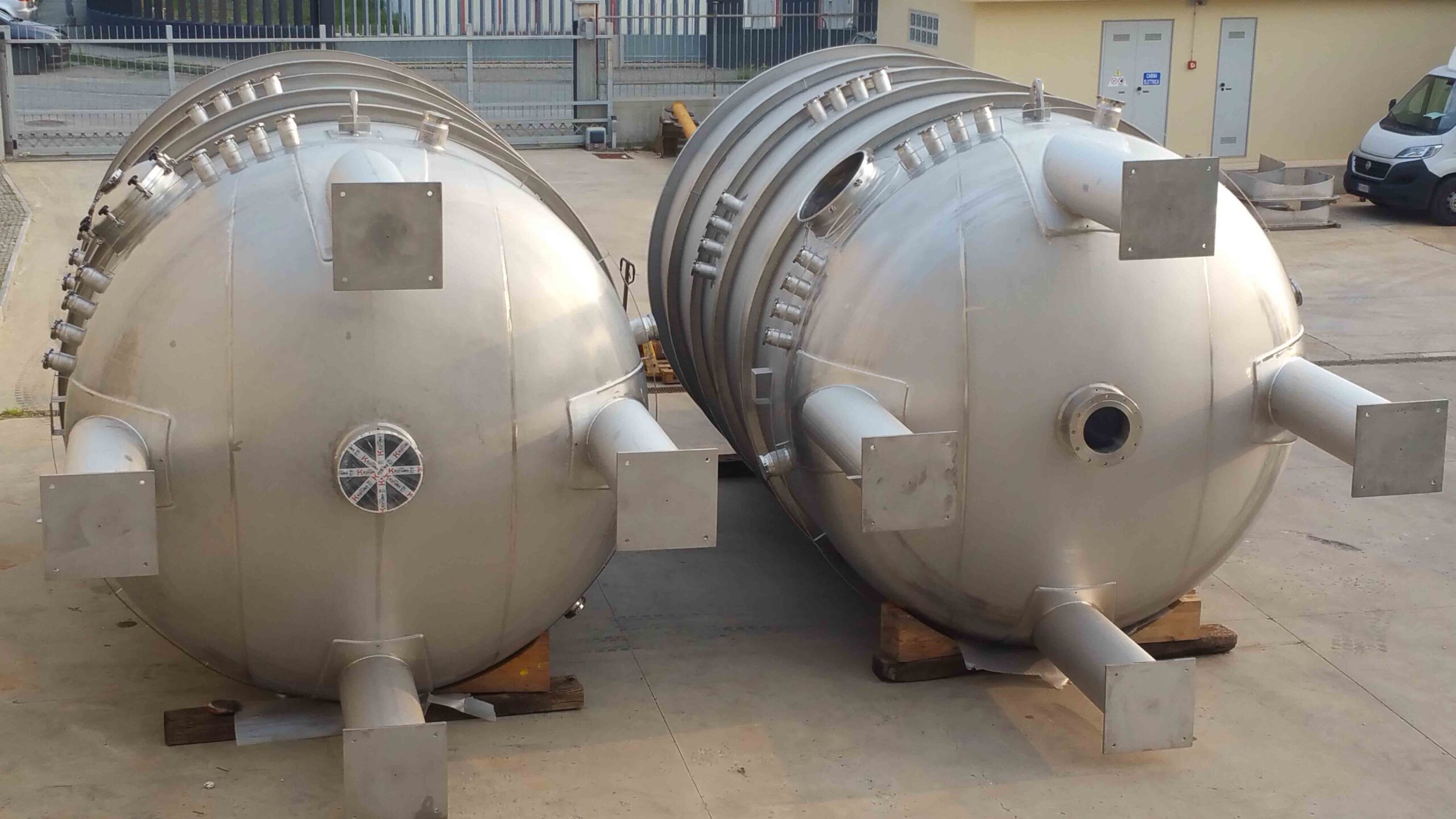

Design, fabrication, and supply of 3 stainless steel pressure vessels for a major biochemical plant in the United States. All units were built according to ASME VIII Div.1 and certified with ASME U-Stamp, officially registered with the National Board.
Technical Specifications:
• Nominal Capacity: 60 m³
• External Diameter: 2,900 mm
• Total Height: ~8,800 mm
• Wall Thickness: 6 mm
• Material: AISI 304 (EN 10028-7)
• Design Code: ASME VIII Div.1
• Design Pressure: -1 / +2.1 barg
• Design Temperature: 204 °C
• No. of Units: 3
• Certifications: ASME U-Stamp, National Board
Key Strengths:
• Designed for high-pressure biochemical processing
• Fully compliant with US and international standards
• Registered and certified for use in the US
• High-precision fabrication and certified welding
- 2024
