Sector: Petrochemical
Country: Italy
Year of Completion: 2024

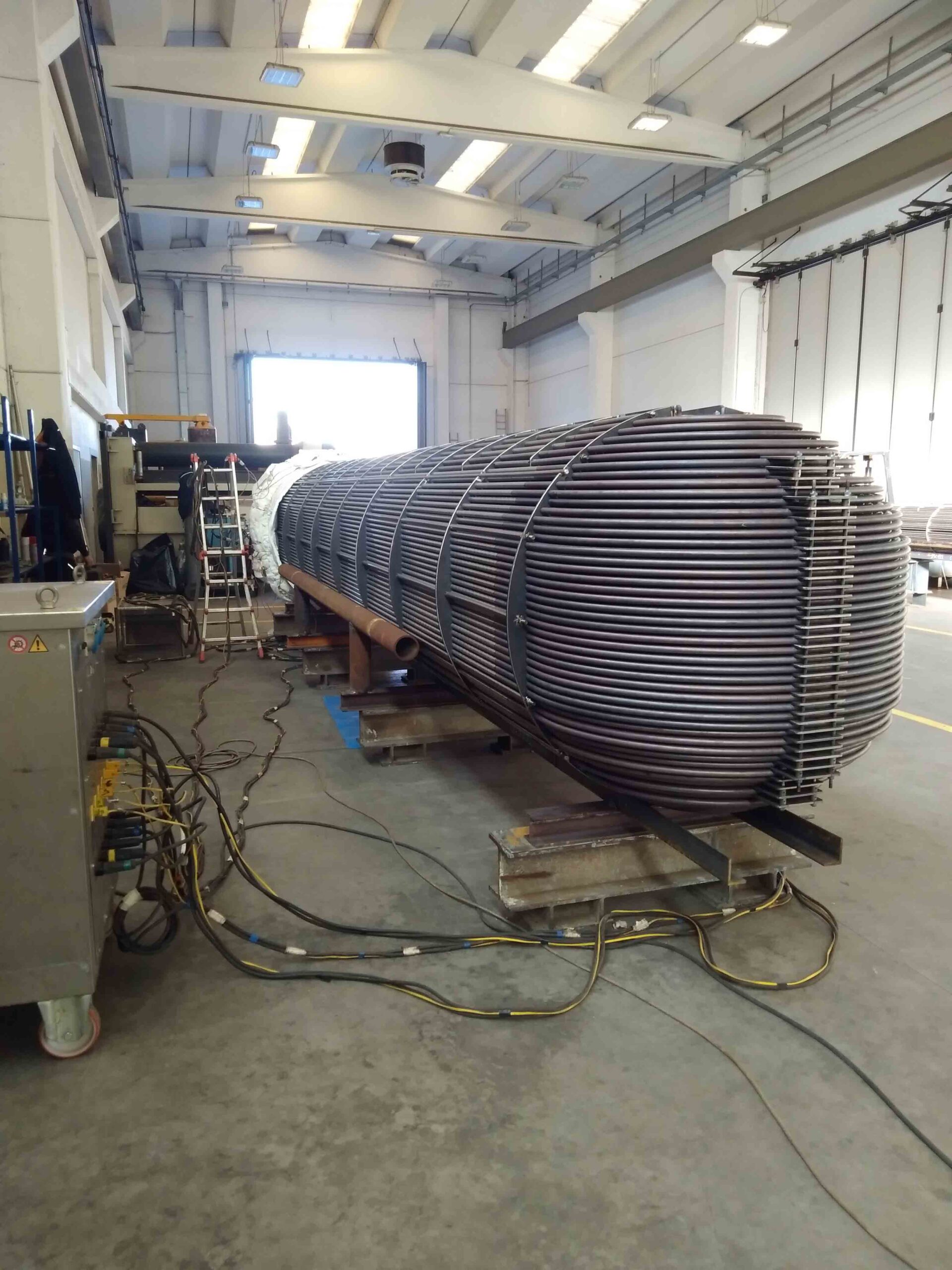

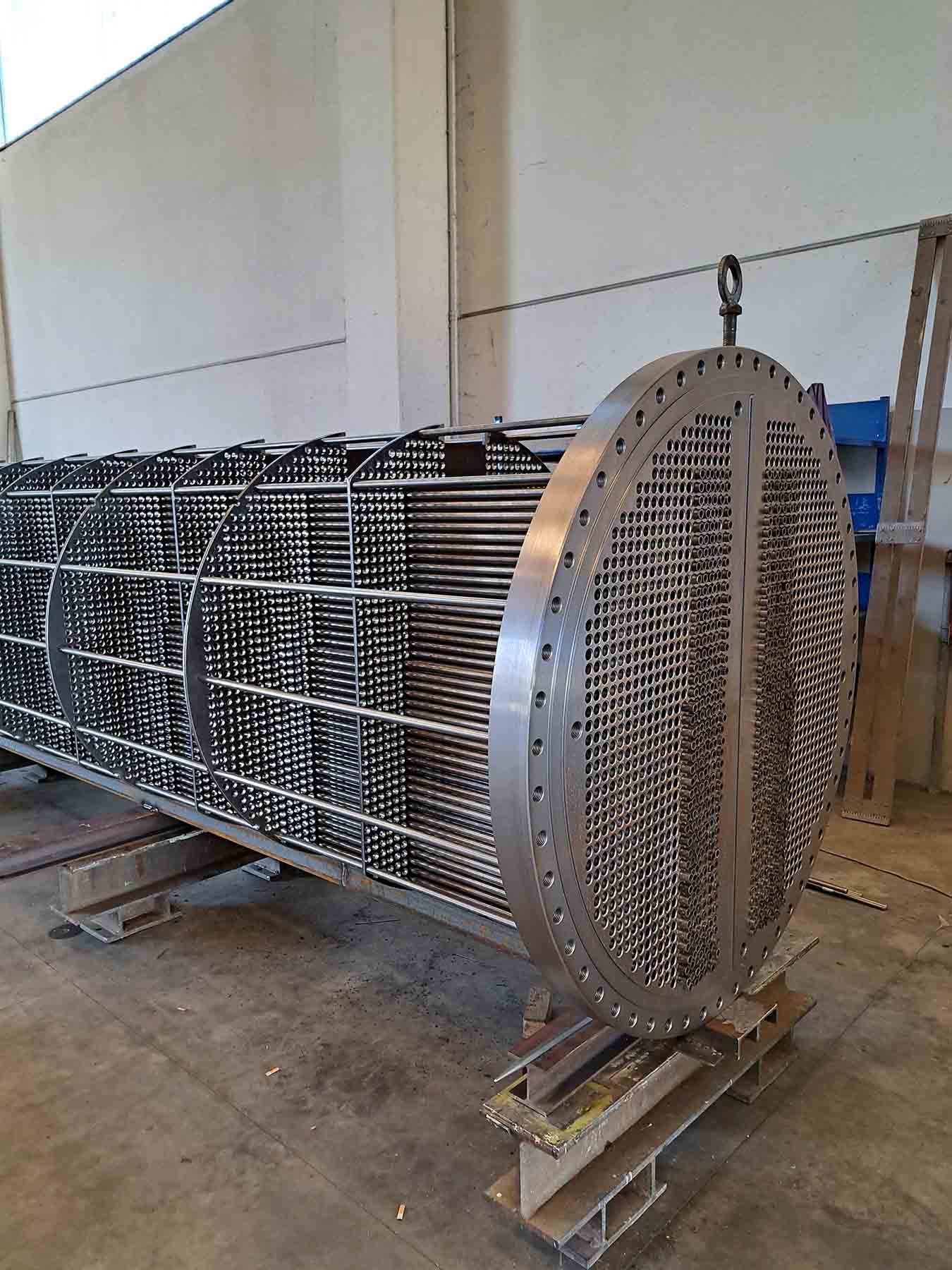

Equipment: Tube Bundle for Heat Exchanger
Objective
CITAL designed and supplied a specialized tube bundle for a critical heat exchanger application within a petrochemical plant in Italy. The equipment was fabricated in strict compliance with ASME standards, ensuring superior performance and reliability in demanding operational environments.
Technical Specifications
- Tube Bundle Configuration:
- Total number of tube holes: 532
- Tube dimensions: Ø19.30 mm × thickness 2.41 mm
- Tube length: 6,000 mm

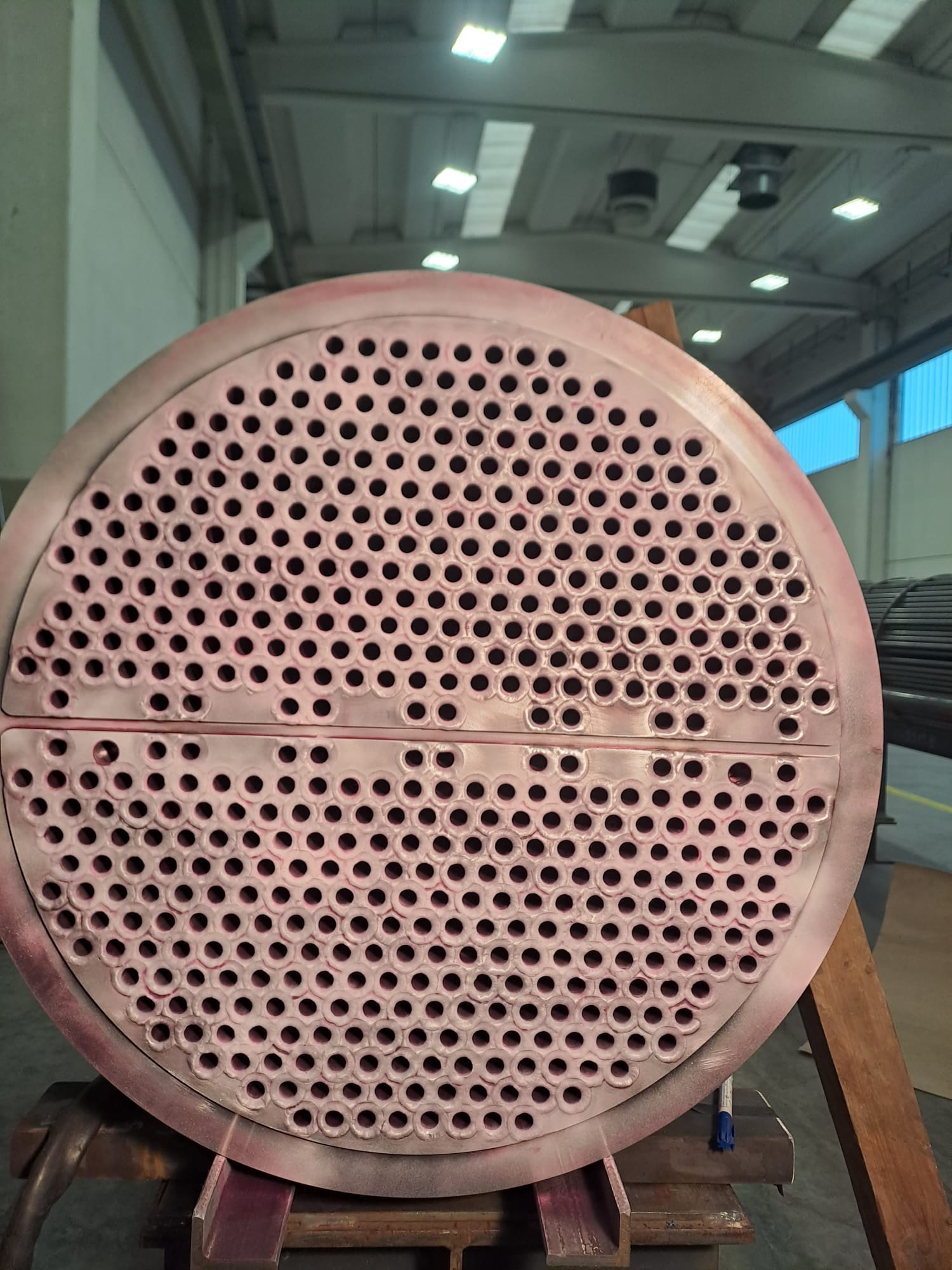

- Tube joint method: Rolled (expanded) and welded
- Materials Used:
- Stainless Steel AISI 304L (tubes and tube sheets)
- Carbon Steel S275 J2 / S355 J2 (support structures)
- Design Standard: ASME Code
- Material Certification: EN 10204 types 3.1 and 3.2
Key Strengths
- High-quality material selection ensuring corrosion resistance and durability
- Precise tube rolling and welding for optimal sealing and mechanical strength
- Full compliance with international standards (ASME, PED)
- Complete material traceability with 3.1 and 3.2 certification
- Robust construction for reliable operation under severe petrochemical conditions
