Sector: Food & Drink / Bioethanol
Client: France – North American Group
Year of Completion: 2023
Objective

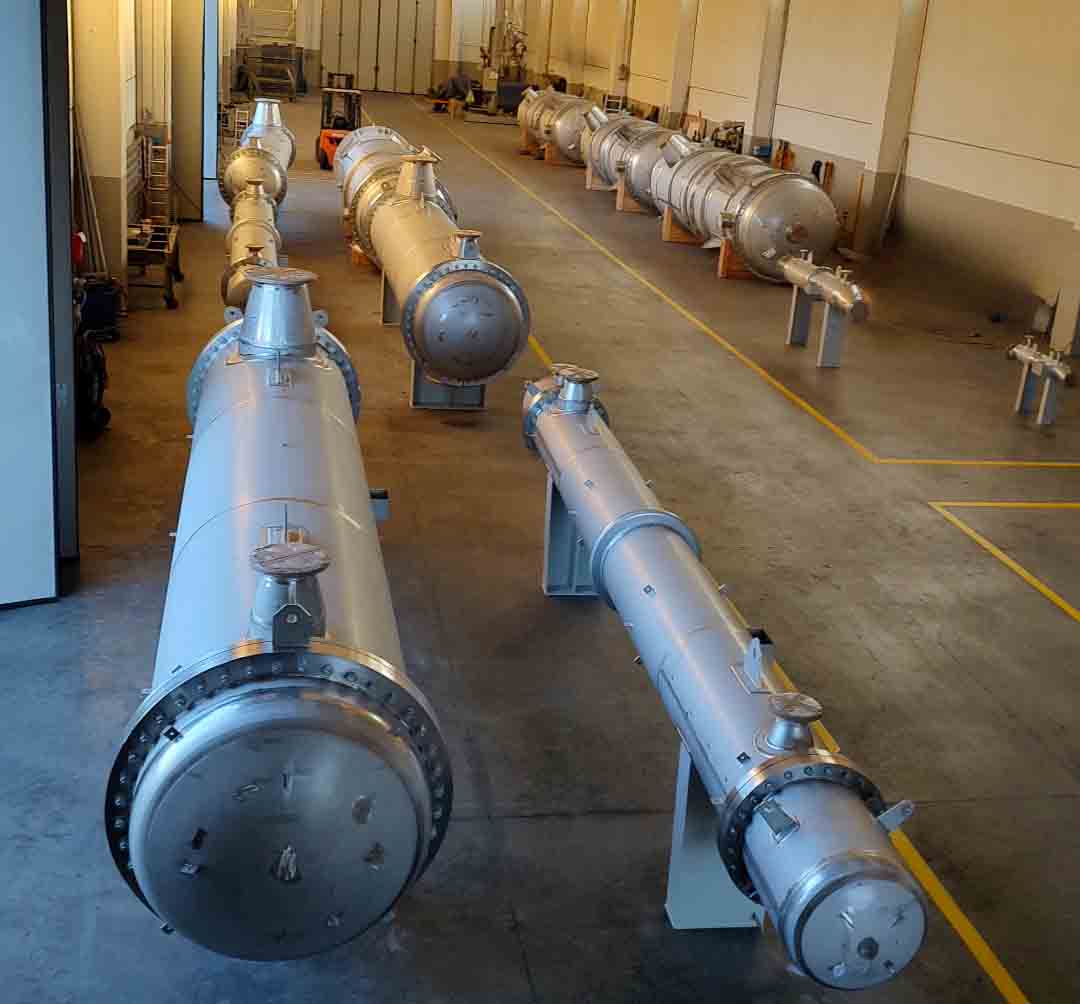

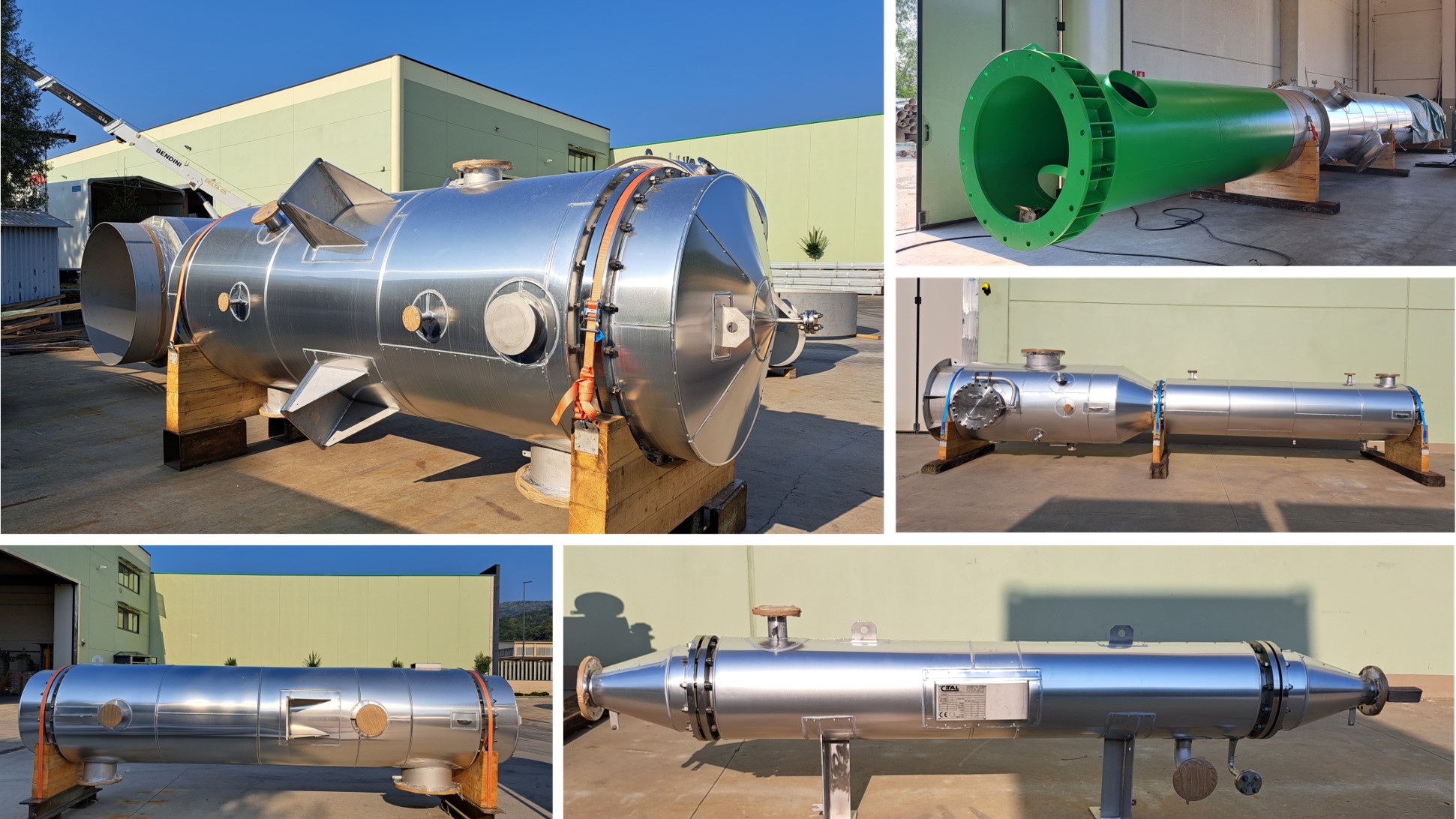

Design, supply, and manufacturing of 7 heat exchangers for a new bioethanol production plant. The project required tailor-made solutions to ensure maximum thermal efficiency and long-term durability.
Technical Specifications
• Number of units: 7
• Design Code: EN 13445
• PED: Group III & IV – Module G
• Diameters: from 300 mm to 1,300 mm
• Lengths: from 3,300 mm to 17,770 mm
• Thicknesses: from 5 mm to 8 mm
• Material: AISI 304L, certified according to EN 10204 3.1
• Tube bundles: from 48 to 460 tubes per unit
• Insulation: 100 kg/m³ rock wool + ISOXAL cladding
Standards & Quality Controls
• Design and manufacturing in compliance with international regulations
• CE certification – Technical documentation compliant with ISO 9001,
• Pressure testing, functional tests, and third-party inspections
• All welds performed using qualified WPS/DMOS procedures in accordance with EN ISO 3834-2
Key Strengths
This project supports a sustainable strategy for the production of bioethanol . CITAL successfully managed the design, manufacturing, and delivery of the heat exchangers within the required timeline, ensuring high reliability even in aggressive environments and continuous operation.
